ZAP provides automated security tests in continuous integration pipelines

Always On

The Gooey

Figure 2 shows the great reveal: ZAP's GUI served courtesy of a friendly neighborhood Docker over VNC. A generous level of detail, help, and options are available within the GUI. Notice the questions about persistence before you begin your session and see Listing 1 for Docker's part in making that possible.

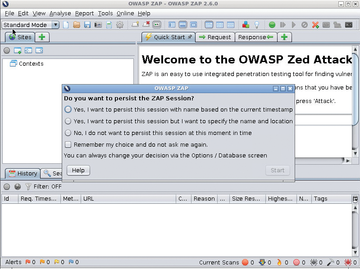

Figure 2: A sight for sore eyes if you've been staring at terminals all day: the ZAP GUI in all its glory.

I will leave you to explore the application (carefully and targeting only your own systems) and return to the API, which can be integrated in true DevOps fashion within a CI context.

However, first, I would be remiss not to mention the Check for Updates option under the Help menu. If you want to see a list of the innards of the beast (and by that I mean which add-ons give ZAP its functionality), check for updates. Figure 3 shows what I see when asked which add-ons I want to update.

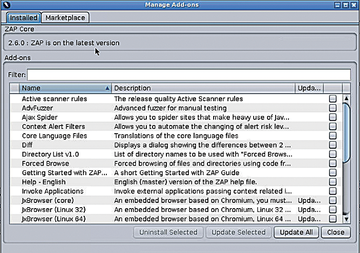

Figure 3: When checking for updates, you're shown a list of add-ons available immediately, along with the option to update them all.

Incidentally, if you mouse over the Description field of an add-on, you are offered a very helpful yellow pop-up box with details of the add-on, including a note related to its level of maturity.

Piping Hot

With the basics under your belt and fully appreciating that by harnessing the power of ZAP you can get some very useful scanning results (and enjoy the minimal setup time involved and not very steep learning curve), you now need to focus on how to access the ZAP API.

When dealing with automated execution from triggered, event-fired scans, you do not need to be overly concerned with persistence or the GUI. In some circumstances, you might just automate tasks using Docker commands and not by accessing the API directly. In the following simple example, I fire up a Docker container for a specific task, such as a baseline scan (a safe, passive scan) of a website:

$ docker run -t owasp/zap2docker-stable -t

The above command will, by default, run for one minute against the target with passive scanning and warn on all issues. All parameters are configurable, as you'd expect from such a sophisticated tool, including adding regex to keep certain URLs from being tested.

If you want to check what options are available, access the script by running it without options through Docker or by entering the container, as in Listing 1, and running the script. Here's the simple no-options route:

$ docker run -t owasp/zap2docker-stable

Running the command without options brings up a useful help page (Figure 4).

Figure 4: Some of the safe baseline script options that aren't destructive, just informative.

My favorite choice is to create my own config file with the -g switch, which generates a file that can be edited to switch certain tests off in future scans. The docs suggest the following set of command-line options to generate a config file and a report:

$ docker run -v $(pwd):/zap/wrk/:rw -t owasp/zap2docker-stable -t -g generated_file.conf -r shiny_report.html

In Listing 2, you can see some partial results from a potentially automated baseline scan.

Listing 2

Baseline Scan Results

Total of 18 URLs
PASS: Cookie No HttpOnly Flag [10010]
PASS: Cookie Without Secure Flag [10011]
PASS: Password Autocomplete in Browser [10012]
PASS: Incomplete or No Cache-control and Pragma HTTP Header Set [10015]
PASS: Content-Type Header Missing [10019]
PASS: Information Disclosure - Debug Error Messages [10023]
PASS: Information Disclosure - Sensitive Informations in URL [10024]
PASS: Information Disclosure - Sensitive Information in HTTP Referrer Header [10025]
PASS: HTTP Parameter Override [10026]
PASS: Information Disclosure - Suspicious Comments [10027]
PASS: Viewstate Scanner [10032]
PASS: Secure Pages Include Mixed Content [10040]
PASS: Weak Authentication Method [10105]
PASS: Absence of Anti-CSRF Tokens [10202]
PASS: Private IP Disclosure [2]
PASS: Session ID in URL Rewrite [3]
PASS: Script Passive Scan Rules [50001]
PASS: Insecure JSF ViewState [90001]
PASS: Charset Mismatch [90011]
PASS: Application Error Disclosure [90022]
PASS: Loosely Scoped Cookie [90033]

Massive Attack

The functionality of the baseline scripts are highly useful, but for mass deployment across many machines, the clever ZAP offers an alternative that lets you aim for multiple targets at once. These ZAP scripts are available in the Community Scripts repository on GitHub [9].
