Versioned backups of local drives with Git


Article from ADMIN 72/2022
Versioning is a recommended approach to back up files as protection against hardware failures and user errors. To create versioned backups, you can use established backup programs or an open source tool that originates from the developer world: Git.

Despite cloud and file servers on the corporate network, users still store important files on the local hard drives of their workstations or laptops. Modern solid-state drives (SSDs) lull users into a deceptive sense of security: Thanks to technologies such as self-monitoring analysis and reporting technology (S.M.A.R.T.) and wear leveling, these data storage devices can predict their demise and usually warn the user in time before a disk failure. However, valuable data is rarely lost by spontaneous disk failure. More often, the cause of data loss is the users themselves accidentally deleting or overwriting files. If you travel with your laptop, you also have to worry about losing the device or damaging it irreparably.

A device and its operating system and applications can be replaced quickly, but it's a different story for user files. Therefore, every user with important files on their local computer needs a viable backup and restore strategy that covers the following functions:

  • Multilevel file versioning
  • Local backup
  • Remote backup over local area network (LAN)
  • Optional remote backup over wide area network (WAN)
  • Backup and recovery independent of the operating system

On the free market, all common operating systems have tons of backup programs – many with inexplicably confusing user interfaces. For most users, the backup chain ends at the USB drive, but if you want to back up your data, it is better to use a network share. Common cloud backup tools, on the other hand, back up directly to the connected cloud and therefore only work if you are online.

Backup with Git

The Git [1] tool supports code versioning, shows the details of the differences between saved versions, and allows multiple developers to work together on a project. Because it works online and offline, this popular open source application is more or less a perfect backup program; moreover, it is available for all common operating systems. The backup format is openly documented – independent of the operating system and filesystem – and not a proprietary file format.

Anyone who creates a Git repository first creates an object store with copies of the selected data. This object store keeps track of the changes in the files saved in it. As soon as the user makes a "commit" (i.e., a snapshot of the files), Git remembers the changes to the previous version. Users can roll back the entire repository or individual files to previous versions if they want and recover accidentally deleted information from a previous snapshot.

However, Git does not just back up its repository on the local system. Users can create one or more remote copies of the repository and upload the versions there. Luckily, remote repositories do not need to receive every single commit immediately. A user can write many consecutive commits to the local repository and then send an update to the remote repository. Git's delta mechanism will submit all missed commits from the local repository so that the remote repository ends up containing all intermediate steps.

Git is also very flexible when it comes to restoring. You can conveniently access previous versions of individual files or entire directories at the command line or in one of the many available Git user interfaces (UIs). When doing so, you do not need to overwrite the existing version but can save an earlier version under a different name. You also have a wide choice of Git servers and, here too, you can view, modify, or download individual files on the web UI, if required.

Git on Windows

The Git homepage offers a setup for Git on Windows [2]. In addition to the plain vanilla command-line (CLI) tool for the Windows prompt and PowerShell, Git also provides the necessary OpenSSL libraries and tools and a MinGW environment, the native Windows port of the GNU Compiler Collection (GCC), that lets Windows administrators run Git from the command line or in PowerShell, as well as in Git Bash.

Windows also has a number of graphical UI (GUI) tools for Git. The popular GitHub Desktop is primarily aimed at application developers; however, this tool does not give you a very good overview, especially for large repositories. Although it is not open source, Atlassian provides its Git client Sourcetree [3] free of charge (Figure 1). The client can be used for both development and backup repositories. Git Extensions [4] offers a somewhat older, technically overloaded look and feel (Figure 2). In return, this free client is extremely fast and includes many features.

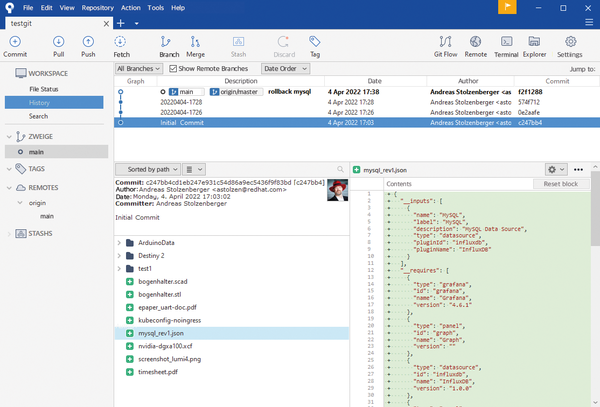

Figure 1: Atlassian's free tool Sourcetree provides insights into local and remote Git snapshots.

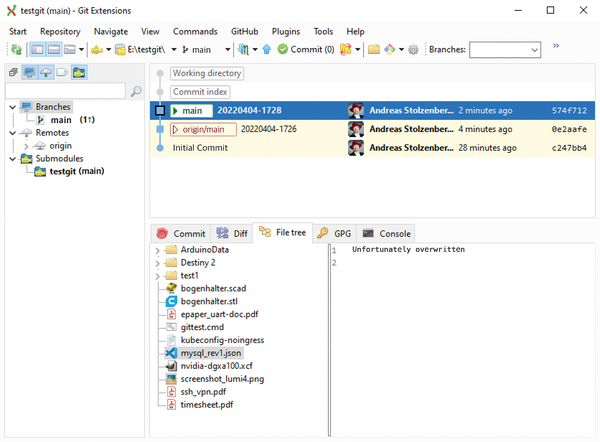

Figure 2: In the Git Extensions open source tool, you can see the complete history of commits.

If you use the Eclipse development environment, the JGit tool, written in Java, is included. Unlike the conventional Git client, JGit also handles the Amazon Simple Storage Service (S3) protocol. If you want to store your repository somewhere instead of, or in addition to, the regular Git server, you can use JGit to move directly into an S3-compatible object store.

Distributing Local Git

For version control, Git creates the versioned repository in the .git subdirectory within the folder to be backed up. However, this does not work for the backup scenario here. The key to success is the --separate-git-dir parameter when creating the repository, which tells Git not to create the object store for versioning in the directory, but on a different path. In this case, .git is not the directory with the files, but a text file with the link to the external directory (i.e., it acts independently from the operating system and filesystem).

In this example, you will be creating a Git repository inside the regular user directory for documents and using a USB drive with driver letter H: for the object store:

mkdir h:\git_backup
cd %HOMEPATH%\Documents
git init --separate-git-dir=h:\git_backup
git add -A

If you have not used Git on the system before, the tool will ask you for global variables such as your username and email address; then, it creates the object directory on the USB drive. Depending on the volume of data in the document directory, this step can take some time. In this setup, Git writes its data at a rate of about 1.2GB per minute. The speed also depends on whether Git needs to write small or large files. During the write process you will see a number of warnings, such as:

warning: LF will be replaced by CRLF in <filename>

This message refers to the old dilemma that *nix systems define the end of line (LF, line feed) in a text file differently from Windows (CRLF, carriage return-line feed). Because Git works independent of the operating system, it always saves text files within the object memory in *nix format but leaves the original file unchanged. This automatic conversion should not bother you unless you are restoring a text file stored in Git without the Git tool. For example, if you download a text file from your repository over HTTP from a Git server with a web UI, no CRLF reconversion takes place.

Now that Git has copied all the data to the local repository, you can create a snapshot of the current state with a commit:

git commit -m "Repository created"

Now, if you make changes to files, Git tracks them and saves them for the next commit. Each commit is given a unique ID and, for clarity, a name that you pass in with the -m parameter – in this case Repository created . Later, you can see in the Git history exactly which files changed in which commit, but if you add new files to the directory, Git does not automatically include them in the repository. You need to run a git add -A again before committing. To automate the process, create a suitable batch file:

set commitname=%date:-4%%date:-7,2%%date:-10,2%-%time:-11,2%%time:-8,2%
set gitdir=%HOMEPATH%\Documents
cd %gitdir%
git add -A
git commit -m "%commitname%"

Now you can create a shortcut on the desktop and trigger the backup at the push of a button. Alternatively, create an automatic task that performs the backup regularly (e.g., every hour), but keep in mind that Git, like any other program, cannot include open files in the snapshot. Of course, the script can be prettified – for example, to check first whether the USB target disk is connected to the system before triggering the backup and initiating an upload to the server once a day.

Now, to restore a single file to a previous state after an accidental change, use git restore as in Listing 1.

Listing 1

git restore

type mysql_rev1.json
Unfortunately overwritten
git log mysql_rev1.json
commit 780...
Author: Andreas ....
git restore --source 780... mysql_rev1.json
type mysql_rev1.json
    "__inputs": [
         "name": "MySQL",
         "label": "MySQL",
         "description": "MySQL Data Source",
