Integrating OCS information into monitoring with OpenNMS

Automatic Transfer

Installing the Integration Server

Installing PRIS is an easy process via the OpenNMS Yum and Debian repositories. The Java source code is also available and can be compiled itself. The installation options are described in the OpenNMS wiki for OCS integration  [8]. In this example, the PRIS is installed on the same server as OpenNMS. The server listens on the local address 127.0.0.1 on port TCP/8000 and provides the data from the servers to be imported in XML format. The structure of the PRIS configuration files is shown in Figure 5.

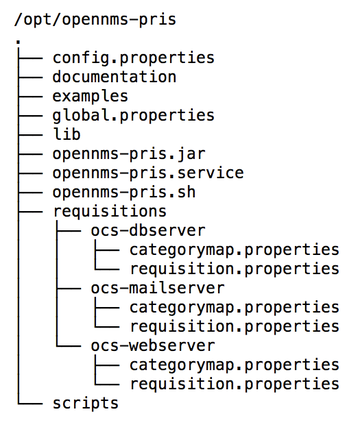

Figure 5: The structure of the Provisioning Integration Server configuration files.

The directories ocs-dbserver, ocs-mailserver, and ocs-webserver represent the configuration for OpenNMS requisition as outlined in Figure  2. The basic function of PRIS is described in the global.properties file (see Listing 1). The driver parameter indicates that HTTP output is expected. The host and port parameters let you define the network interface and port on which to listen for incoming connections.

Listing 1

global.properties

01 ### start an http server that provides access to requisition files
02 driver = http
03 host = 127.0.0.1
04 port = 8000
05
06 ### file run to create a requisition file in target
07 #driver = file
08 #target = /tmp/

In the ocs-webserver subdirectory, you will find a requisition.properties with a structure as shown in Listing  2. This determines the OCS server from which to retrieve the data. The OCS server in this example has the address 192.168.30.112, and the SOAP interface can be addressed with the SOAP_USER account and a password of mypass.

Listing 2

requisition.properties

01 ### SOURCE ###
02 ## connect to a real ocs and read computers
03 source = ocs.computers
04
05 ## test with static files, no network calls
06 #source = ocs.computers.replay
07 #file = computers.xml
08
09 ## OCS SOURCE PARAMETERS ##
10 source.url = http://ocs-server.mydomain.com
11 source.username = SOAP_USER
12 source.password = mypass
13 source.checksum = 4867
14 source.tags = Server
15
16 ### MAPPER ###
17 ## Run the default mapper for computers
18 mapper.ocs.url = http://ocs-server.mydomain.com
19 mapper = ocs.computers
20 mapper.accountinfo = MONITORED.Monitored PURPOSE.Webserver
21
22 ### CATEGORIES ###
23 mapper.categoryMap = categorymap.properties

The ocs.accountinfo parameter specifies that only OCS computers are selected for the ocs-webserver requisition that have Monitored set with a purpose of Webserver. A similar directory is created for mail and database servers. In the respective requisition.properties files, the parameters for ocs.accountinfo are adjusted to reflect the intended use: Mailserver and Databaseserver.

The mapper parameter determines which inventory information from OCS is transferred to OpenNMS. If the standard procedure is not enough, you can specify your own Groovy script to map the data. In the example, this step is unnecessary.

The last parameter, categoryMap, defines a file in which the environment is assigned for the OpenNMS surveillance category. In the present scenario, the definition stipulates that the environments for Production and Stage are assigned to the same surveillance categories in OpenNMS. The categoryMap.properties file looks identical for mail, web, and database servers:

ENVIRONMENT.Production=Production
ENVIRONMENT.Stage=Stage

The PRIS uses a URL of http://localhost:8000/requisitions/ocs-webserver to provide server data for the import as per the configuration from the ocs-webserver. The path used here, /ocs-webserver, matches the directory created on the filesystem. Accordingly, the paths /ocs-dbserver and /ocs-mailserver take you to the categorized mail and database servers from OCS. This completes the configuration of the integration server; in the next step, OpenNMS is set up for automatic synchronization.

Importing with provisiond

To import the systems into OpenNMS and sync with OCS automatically, you need to configure OpenNMS provisiond. To do this, you need to edit the provisiond-configuration.xml file in the /opt/opennms/etc directory, as shown in Listing 3.

Listing 3

provisiond-configuration.xml

01 <?xml version="1.0" encoding="UTF-8"?>
02 <provisiond-configuration
03   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
04   xsi:schemaLocation="http://xmlns.opennms.org/xsd/config/provisiond-configuration"
05
06   foreign-source-dir="/opt/opennms/etc/foreign-sources"
07   requistion-dir="/opt/opennms/etc/imports"
08
09   importThreads="8" scanThreads="10" rescanThreads="10" writeThreads="8" >
10
11   <!--
12     http://quartz.sourceforge.net/javadoc/org/quartz/CronTrigger.html
13         Field Name     Allowed Values      Allowed Special Characters
14         Seconds        0-59                , - * /
15         Minutes        0-59                , - * /
16         Hours          0-23                , - * /
17         Day-of-month   1-31                , - * ? / L W C
18         Month          1-12 or JAN-DEC     , - * /
19         Day-of-Week    1-7 or SUN-SAT      , - * ? / L C #
20         Year (Opt)     empty, 1970-2099    , - * /
21    -->
22   <!-- Import Web-Server -->
23   <requisition-def import-name="OCS-Webserver" import-url-resource="http://localhost:8000/requisitions/ocs-webserver">
24     <cron-schedule>0 0 0 * * ? *</cron-schedule>
25   </requisition-def>
26
27   <!-- Import Mail-Server -->
28   <requisition-def import-name="OCS-Mailserver" import-url-resource="http://localhost:8000/requisitions/ocs-mailserver">
29     <cron-schedule>0 0 0 * * ? *</cron-schedule>
30   </requisition-def>
31
32   <!-- Import Database-Server -->
33   <requisition-def import-name="OCS-Databaseserver" import-url-resource="http://localhost:8000/requisitions/ocs-dbserver">
34     <cron-schedule>0 0 0 * * ? *</cron-schedule>
35   </requisition-def>
36 </provisiond-configuration>

The relevant sections here are for the requisition definitions (requisition-def), with entries for OCS-Webserver, OCS-Mailserver, and OCS-Databaseserver. This ensures that OpenNMS creates one requisition each for web, mail, and database servers. Each requisition configures the behavior for monitoring. Listing 3 also stipulates that the web, mail, and database servers are synchronized daily at midnight by a local PRIS on port 8000.

The next step creates the three requisitions in the OpenNMS web interface. For this purpose, select Admin in the main menu, and Manage Provisioning Requisitions . Then, you can use the input field to create the three requisitions – ocs-webserver, ocs-mailserver, and ocs-dbserver – as shown in Figure 6. To create a profile that determines how the systems are handled on importing, you now need to configure the service detectors for each requisition. To do this, you need to specify which service detectors to use in Edit under Requisition (1).

Figure 6: Preparing the requisitions for the automatic import in OpenNMS.

When a requisition is created, all available service detectors are assigned. Thus, it's useful to select only the service detectors that are actually meaningful for mail, web, and database servers. Figure 7 shows that the configuration for web servers keeps only the ICMP, HTTP, HTTPS, and SNMP service detectors and deletes all the others. The group of mail and database servers keeps service detectors, such as SMTP, IMAP, POP3, and JDBC.

Figure 7: Selecting the service detectors for web servers.

This configuration results in OpenNMS checking, when importing from OCS, whether HTTP or HTTPS, for example, are available over the network from the server to be imported. If so, the services are automatically mapped and automatically integrated into the monitoring setup.

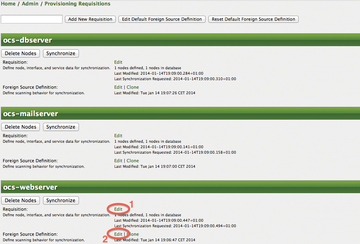

As seen in Figure 6, you can also use the Foreign Source Definition Edit (2) to define policies for a requisition. You can decide how to handle the performance data import or whether to apply rule-based categorization of the systems. However, this step is not relevant to the present example. Further information on policies can be found on the OpenNMS wiki in the Provisioning Users Guide [9].

Notifications

So far, you have seen how to set up automatic synchronization between OCS and OpenNMS. OCS can control which servers are to be imported automatically into OpenNMS. OpenNMS uses requisitions to apply a monitoring profile consisting of service detectors for web, mail, or database servers. You also need some notifications for the NOC and the development team. To be able to send mail, OpenNMS needs to communicate with a mail server. The basic configuration for sending mail is described in detail on the OpenNMS wiki in the Notification Tutorial section [10].

When importing, we already stipulated that the OCS Environment attribute should be assigned as a surveillance category on the OpenNMS nodes. You can now use this surveillance category as a notification filter.

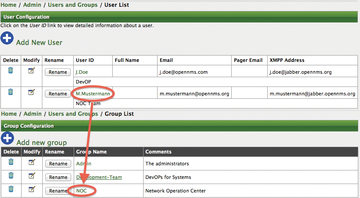

The two teams – development and NOC – are mapped via groups in OpenNMS. Appropriate OpenNMS users from the teams are assigned to each of the two groups. The contact information – including the OpenNMS user's email address – can be used for notification. Setting up OpenNMS users and groups is shown in Figure  8. You can do this in the Admin | Configure Users, Groups and On-Call Roles administration section of the web interface.

Figure 8: OpenNMS users and groups for notification.

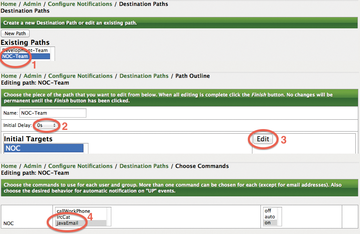

The next step creates two paths for the notification, which is done in the Admin | Configure Notifications  | Configure Destination Paths administration section of the web interface. We generated two paths here, as shown in Figure 9(1). The newly created path is edited and selected as a target for the NOC user group. The Initial Delay (2) configuration determines how long to wait after a failure before OpenNMS notifies the group. When editing the path  (3), make sure you select the value javaEmail (4) for the notification command.

Figure 9: Creating the notification path for the NOC group.

In the last step, the notification is configured. Any errors will generate an event in OpenNMS. Events are identified by an identifier – the UEI. In this example, the administrator configures a notification for a nodeLostService event. This notification is generated when, for example, a server is still reachable on the network using ICMP, but a service like HTTP is unresponsive.

To this end, you need to edit the notification for nodeLostService in the Admin | Configure Notification | Configure Event Notifications administration section of the main menu. You can then see the event identifier (UEI) for which the notification was created. To confirm the pre-selection, press Next ; you are then prompted to specify the systems and services to which the notification applies.

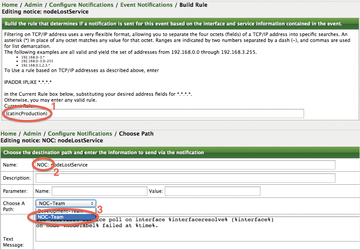

Figure 10(1) shows which filters you should enter for the production environment. The rule shown here – catincProduction – uses the catinc prefix. This prefix stands for "category include" and is equivalent to categoryName == 'Production'. Important information: Spaces and non-standard characters should be avoided in surveillance categories.

Figure 10: Selecting notification filters and targets.

The filters and rule evaluations can cause problems in some places. The Validate rule results selection provides details of the systems to which to apply the filter rule. After you select Skip validation results , the wizard then continues.

Figure 10(2) shows that the designation of nodeLostService has changed to NOC:nodeLostService. You can thus see in the user interface that this notification is intended for the NOC team. Under Choose A Path , you then select the previously created notification path, NOC-Team .

If so desired, the actual notification text can be changed here. A text frame can be populated with variables such as %%nodelabel. When a fault occurs, these variables are then replaced with the values for a specific system.

For safety's sake, you should check that the notification status is set to On below Admin  | Notification Status . You can also disable individual notifications. For this reason, you will want to enable NOC:nodeLostService below Admin | Configure Notifications | Configure Event Notifications .

To notify the development team, a second notification is produced for the nodeLostService event based on the same pattern. As shown in Figure 10, you only enter catincStage as a filter rule. For the notification itself, you can use a name of Dev:nodeLostService. Finally, you need to set the target path for notifications to Development-Team .
