Setting up DevOps Orchestration Platform


Local Listening Ports

The listening port pop-up window (Figure 10) is useful not only for analyzing the potential attack surface of each instance from a security perspective, but to find out which port to point your browser to after deploying applications such as Prometheus, Grafana, Kibana, VNC, and so on. The port window can be displayed by selecting Get Listening Ports from the VM instance detail window (Figure 9).

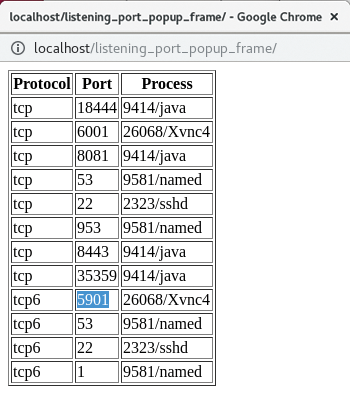

Figure 10: The TCP listening port pop-up window.

Deploying Kubernetes on Bare Metal VMs

A powerful feature of DevOps Orchestration Platform is that it is able to deploy Kubernetes on arbitrary bare metal VM clusters. You do not need to make a single change to a single configuration file or even run a single Linux command. Everything from the Kubernetes Weave Net network overlay to the master and agent installations on instances is dealt with by automated Terraform templating and dynamic Ansible inventory configuration.

However, Kubernetes components must be installed in the correct order, simultaneously being mindful that, in the Kubernetes case, "server" refers to "master," and "client" refers to "agent" or "node." In the terminology of DevOps Orchestration Platform, then, joining a Kubernetes node to a Kubernetes master involves pointing a Kubernetes client to the Kubernetes server at the agent deployment stage.

For Kubernetes, the correct installation order is:

  1. Install Docker
  2. Prepare Kubernetes
  3. Install Kubernetes master
  4. Install Kubernetes agent

To use the private Docker registry, Nexus 3 must already have been deployed by the tool, with the Configure Docker Client playbook additionally run on every node that will have a Docker daemon.

After Kubernetes is installed (checking the Ansible log to ensure it has run smoothly), navigate to Kubernetes on the left navigation bar, select the instance hosting your Kubernetes master node, and click Get Dashboard Token , before opening the Kubernetes Dashboard (Figure 11).

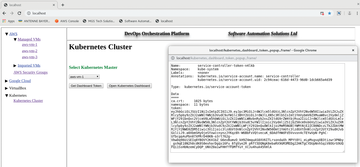

Figure 11: Obtaining the Kubernetes dashboard token with full admin rights.

Bootstrapping Docker Containers and Images

The platform can be used to bootstrap and deploy Docker containers, although testing of this feature was limited by time constraints. To use this feature, a Nexus 3 server must have previously been deployed into the corresponding subnet, by the tool. Nexus 3 contains its own private Docker registry, also configured automatically by DevOps Orchestration Platform. TLS certificates are automatically generated. After deploying Nexus 3, the Configure Docker Client playbook must be run for each node running the Docker client daemon. Selecting Docker Containers in the VM instance detail window brings up the Docker configuration window shown in Figure 12.

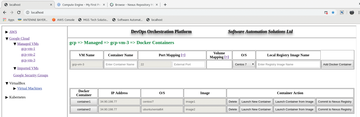

Figure 12: The Docker configuration window.

Similar to the mechanism used for VMs, Docker containers are added from the top window. Port and volume mappings to the host can be added here – as many as desired. Remember that "host" in this case refers to the deployed cloud instance or VirtualBox VM, not the host running DevOps Orchestration Platform. After adding the Docker container details, various options are available when launching the container.

To commit the Docker container to a Docker registry (which invokes docker commit behind the scenes), a Nexus 3 deployment must have previously been deployed into the same subnet as the instance on which the Docker containers are being launched (Figure 13). The instances comprising the Docker client and Docker registry must be resolvable within the subnet, by either the sample DNS BIND9 playbooks included with the tool or an equivalent DNS service such as Route 53.

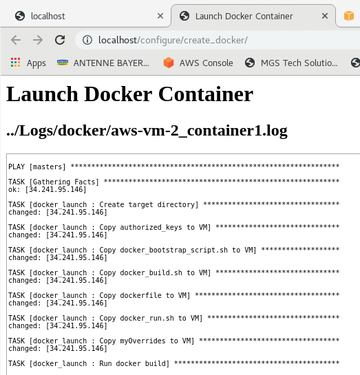

Figure 13: A sample Ansible log of a successful Docker container launch.

After a successful commit, you will be able to see the Docker image stored in the Nexus 3 registry. These images will have names matching the ones you entered in the Local Registry Image Name box in Figure 12.

The SSH username and password used inside the Docker containers currently must be the same as the SSH credentials for the VM instance on which that Docker image was originally bootstrapped. Therefore, if the tool is used to pull the Docker image back out of the registry to run it again, it must be pulled onto the same original VM instance.
