Resolving problems with DNS, Active Directory, and Group Policy

Escaping the Trap

Article from ADMIN 38/2017
Upgrading domain controllers or installing new servers can cause problems with name resolution, Active Directory replication, and Group Policy. A coordinated approach can isolate these errors in Windows Server 2008 or newer.

Incorrect name resolution and network connectivity are the most common problems on networks. Therefore, if a service on one or more computers fails or if connectivity and performance problems occur, always check first whether name resolution and the connection between the servers and clients is working optimally. At the command prompt, nslookup checks to see whether the name of the server can still be resolved on the computers involved, which can often help delimit errors. All participating servers – and clients – need to be able to resolve one anothers' addresses.

Name Resolution and Network Connectivity

Name resolution plays an important role: The nslookup command must return the server IP address correctly. However, this does not work in nested structures until you have configured Domain Name System (DNS) servers for the subdomain on the subdomain controller and the DNS server has registered. To use other DNS servers for name resolution on the local machine, run nslookup <host> <server> at the command line as follows:

nslookup dc02.microsoft.com dc01.contoso.com

Here, nslookup attempts to resolve host dc02.microsoft.com using server dc01.contoso.com . Instead of the second entry, you could specify the IP address.

If you enter a DNS server with its fully qualified domain name (FQDN) as the service entry, it requires the DNS server used by the local computer to resolve the server dc01.contoso.com , but not the host dc02.microsoft.com . The DNS server dc01.contoso.com in turn can then resolve the host dc02.microsoft.com , and you will not see an error.

In other words, you can use the nslookup tool to reveal in great detail the weak points of your DNS resolution. To query multiple hosts one after another, use

nslookup -server <server>

where <server> is the name or the IP address of the DNS server you want to query; for example:

nslookup -server

You can also combine the two options, if necessary.

If you start nslookup so that it does not use the locally configured DNS server for name resolution, but the remote server, you can enter <host> <server> in the nslookup command to query a different DNS server.

The nslookup tool launches at the command prompt and is configured to use DNS server for name resolution. It checks whether the locally configured DNS server can resolve IP address to a server name in its reverse lookup zone (Figure 1, area 1). Because that works, the output shows DNS server as the Default Server with FQDN dc01.contoso.com . An error message at this point (e.g., if the server name for is unknown) would mean that the DNS server configured in the IP settings of the local computer cannot resolve the server name in its reverse lookup zone. In this case, you need to check the configuration of the reverse lookup zone and ensure that all pointers are entered correctly. Consistent name resolution with DNS not only involves resolving server names to IP addresses (forward), but also IPs to server names (reverse).

Figure 1: Diagnosing DNS problems with nslookup lets you narrow down the potential causes of an error.

The next command (Figure 1, area 2) tries to get the server with IP address to resolve hostname dc02.microsoft.com , which it cannot. In this case, a problem exists on the server at, which fails to identify the microsoft.com zone. Either you need to check the Forwarders tab in DNS Manager for server to see whether you need to set up forwarding to microsoft.com , or you need to create a secondary zone for microsoft.com on server if you want the server to resolve hostnames for the microsoft.com zone. Next, an attempt is made to resolve the same server (dc02.microsoft.com ) using the default server of the nslookup command line (area 3). The default server can easily resolve the server name, which shows that this configuration is fine.

At this point, name resolution from the parent to the subdomain is established. However, name resolution still needs to be set up from the child to the parent domain, and forwarding is the best option:

1. Start by right-clicking Conditional Forwarders in the DNS Manager snap-in.

2. In the context menu, select New Conditional Forwarder and enter the parent DNS domain.

3. Enter the IP address of a DNS server in the parent domain. If multiple DNS servers are responsible for name resolution in the parent domain, you need to store all the DNS servers.

4. You do not need to repeat this action on each DNS server in the subdomain if you replicate the records on the DNS server for the subdomain. For this to work, the subdomain first needs to be created.

Check whether the domain controllers (DCs) in the parent domain can be resolved from the subdomain. In the example in Figure 2, dc-berlin.de.contoso.int is a subdomain controller and dc01.contoso.int is a DC in the parent domain contoso.int . Make sure that name resolution between the subdomains works if you use multiple subdomains. Fully configured name resolution is essential to ensure that Active Directory (AD) replication works and, thus, that the server-based services in the domain also work.

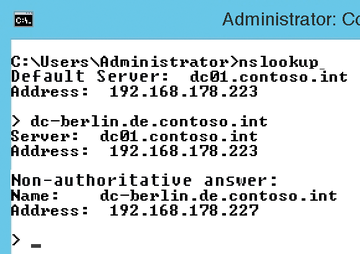

Figure 2: Name resolution must be ensured for a network.

Also use ping to test whether computers on the network can communicate with one another. Note that the Internet Control Message Protocol (ICMP) on which the ping command relies is blocked on many networks. If name resolution and network connections are working well and performance is good, many causes of failure are already excluded. Now launch an unlimited ping test

ping <IP address> -t

to determine whether network packets are lost or the response time in some packages is becoming longer. If you have name resolution problems, also ensure that the correct DNS server is entered in the network settings of the computers. The fastest way to launch the network connection configuration tool is to use ncpa.cpl at the command line.

Optimizing Reverse Zones and IPv6 Settings

Working with a reverse zone makes sense in terms of stability. It can resolve the IP address of a computer to a server name, which in turn helps avoid problems with name resolution. You can create reverse lookup zones with a wizard in the DNS Manager tool, just as for primary DNS zones. After you create an IPv4 zone and enter the subnet you want the zone to cover, register the servers one after another in the zone. You can accelerate the process with ipconfig /registerdns. In exceptional cases, the reverse lookup zone update might not work, in that the server is available in the forward zone, but not in the reverse zone. In this case, you can just manually add the server record. To do this, you only need to create a new pointer.

On the servers, you will also want to enable automatic IP address retrieval in the IPv6 settings; otherwise, the ::1 record (loopback address) will cause an error during local IP address validation (Figure 3). This generally does not affect stability, but it is not ideal for tests or for displaying the correct name. By default, Windows Server 2012 R2, for example, tries to resolve the name to the IPv6 address, resulting in undesirable messages.

Figure 3: Error messages occur during name resolution because of a less than optimal IPv6 entry for the network connection of DNS servers.

Regardless of whether you are using IPv6, you will want to set the DNS server network connection entry in the IPv6 setting to Obtain an IP address automatically . In the IPv4 settings, either enter the IP address of the local server or the IP address of another DNS server on the network. You should always use an IP address of another DNS server on the network as the primary DNS server and your own as the secondary address. If the DNS cache on the computer contains an incorrect record that you have already corrected, you can delete it with ipconfig /flushdns.

When a Windows client launches, it automatically registers with the DNS when the local services (NetLogon service and DNS client) are started. Because you will not want to restart the two services or the entire server to fix problems, you can run ipconfig /registerdns at the command prompt to refresh the DNS records manually.

Repairing DNS Records

The nslookup tool also lets you verify AD SRV locator resource records. Clients can ask the DNS which host on the network is responsible for each server-based service. AD relies heavily on these SRV DNS records. For this reason, it makes sense to verify the records with nslookup. Each domain controller (DC) in the AD has a CNAME, the so-called directory system agent (DSA) object of its NT directory services (NTDS) settings, in addition to its host A name (e.g., dc01.contoso.com ). The CNAME is the GUID of the DSA object, which can be found as an SRV record in the DNS under the _msdcs node of the domain zone.

DCs do not attempt to resolve their replication partners with the traditional host A record but, instead, use the CNAME. If a DC's CNAME fails to resolve, a DC tries to find a host A record. If this also fails, the DC tries to resolve the NetBIOS name, either via broadcast or a WINS server. Each DC needs a unique CNAME, which in turn points to its host A record. In case of replication problems, check that these entries are present.

All the AD SRV records are stored parallel in the \%WinDir%\System32\config\netlogon.dns file, which you can view with an editor. If records that AD requires are missing in DNS zones, the most useful thing to do is run the dcdiag /fix command. The tool attempts to build missing entries from the netlogon.dns file; then, name resolution should work again.

Now, the DNS records should update fairly quickly. If the dynamic update still does not work, check the zone properties to discover whether or not dynamic updating is enabled. If you also want workstations and servers that are not members of the forest to register dynamically with the zone, you can enable the Nonsecure and secure option in the General tab of the DNS Manager Properties dialog for the zone.
