Accelerate web applications with Varnish Cache

Horsepower

Article from ADMIN 51/2019
By
If a web application delivers its pages too slowly, users quickly move on. Varnish Cache lets you hitch more horses to the cart.

Successful web applications grow organically and eventually reach the point where a speed bottleneck occurs in the system. Websites that are too slow usually have high bounce rates. Sometimes, they also suffer involuntary denial of service attacks by normal visitors who continuously click Refresh or Reload if load times are too long.

Because the professional environment often dictates the programming language and the framework used, whether the bottleneck happens sooner or later is out of the developer's hands. (See the "Classic" boxout.) However, with the programmable caching HTTP reverse proxy Varnish Cache, you can speed up the delivery of web pages with performance that is usually limited only by the speed of the network itself.

Classic

Apart from optimizing the cache functions in the stack, you should always look for classic programming errors. Pitfalls large or small are often hidden in legacy code. If you get rid of them, the stack will reward you with significantly more performance than all the subsequent caching could ever offer.

If a website becomes too slow and the bottleneck is the web application server that generates the HTML code, the usual solution is more or faster hardware. If the web application runs on a hosting service like Amazon Web Services or Heroku, you can solve the problem through liberal use of your credit card. Once the latter is exhausted, or if the cloud is not an option or is against your problem-solving principles, the search for better solutions begins.

Whodunit?

To understand a performance problem, you first need to trace the chain from the web browser query to the record. Web applications usually store data in an SQL database. The web application, often written in PHP, Python, or Ruby, grabs this data and turns it into a web page with HTML code that is delivered by a web server (Apache or Nginx) to the web browser. The whole unit up to the web server is also referred to as the back end (Figure 1).

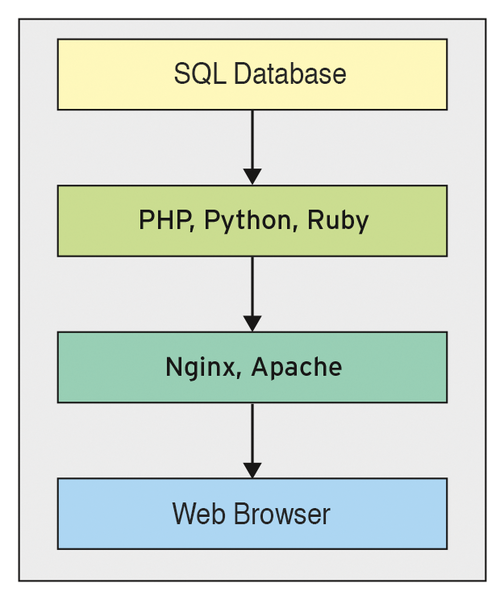

Figure 1: If the back end is too slow, you can search for performance impairments in the various components.

Start by optimizing the database server and, if it is an SQL system, the SQL queries. Once you have exhausted this path, you can then devote your attention to caching in the application, often in the form of fragment caching, which ensures that the cache stores parts of the HTML code created by the web application in a fast key value store such as Redis [1], from which the web application then retrieves it.

You can also work with HTTP caching [2]. The web application tells the web browser that the currently delivered HTML page or image is valid for a certain period of time. The web server passes on this information unchanged, or you can use an ETag [3] for this purpose. Conversely, the browser then asks the web server during repeated visits whether the locally stored page is still relevant.

Quick Broker

If you are actively using the technology and you are having these problems, you will eventually stumble across Varnish HTTP Cache [4], which is a reverse proxy that resides between the web server and the Internet. Although it sounds unspectacular at first – after all, an Nginx or Apache web server also can be configured as a reverse proxy – Varnish is far more intelligent, because it can be programmed and configured with the high-performance Varnish Configuration Language (VCL) [5].

Varnish primarily targets websites with high traffic volumes. Of course, the reverse proxy will also work for a small website, but the initial overhead will probably not pay off. The goal of Varnish is to field as many requests as possible autonomously. Only if it can't make any progress does it access the web server or the web application server behind it.

Varnish cannot do anything that other elements in the chain (i.e., the web server and the web application server) cannot do. In fact, in direct comparison with the application server, Varnish does very few things – but it does them properly; that is, really quickly, because it works well as part of a cluster and globally distributed setup.

Because Varnish uses fewer resources and works faster, the proxy accelerates the entire system. Therefore, most content delivery network providers are probably already working with Varnish, seeking to deliver their data as quickly as possible across continents. How this works is shown by a few VCL examples, in which Varnish plays out its speed.

Redirect from HTTP to HTTPS

Because data transmission via HTTPS is the standard in the age of HTTP2, the website needs a redirect from HTTP to HTTPS (Listing 1). The requesting web browser then receives a 301 Redirect response to the new HTTPS URL.

Listing 1

Redirect from HTTP to HTTPS

01 sub vcl_recv
02 {
03 if (req.http.host ~ "example.com" &&
04 req.http.Cookie == "logged_in")
05 {
06 return (pass);
07 }
08
09 unset req.http.Cookie;
10 }
