Kubernetes k3s lightweight distro

Smooth Operator

William Tell or Agent Cooper to Boot

It's time to get your hands much dirtier now and delve into the innards of k3s. To begin, fire up your k3s cluster by running the script above. Either put the appended pipe and sh section back at the end of the command or type:

chmod +x install-script.sh

You will need to be root for the correct execution permissions.

The trailing dash after the sh in the original command stops other options being accidentally passed to the shell that's going to run. Listing 1 shows what happens after running the install script. The output is nice, clean, and easy to follow.

Listing 1

Installing k3s

[INFO]  Finding latest release
[INFO]  Using v1.0.0 as release
[INFO]  Downloading hash https://github.com/rancher/k3s/releases/download/v1.0.0/sha256sum-amd64.txt
[INFO]  Downloading binary https://github.com/rancher/k3s/releases/download/v1.0.0/k3s
[INFO]  Verifying binary download
[INFO]  Installing k3s to /usr/local/bin/k3s
[INFO]  Creating /usr/local/bin/kubectl symlink to k3s
[INFO]  Creating /usr/local/bin/crictl symlink to k3s
[INFO]  Skipping /usr/local/bin/ctr symlink to k3s, command exists in PATH at /usr/bin/ctr
[INFO]  Creating killall script /usr/local/bin/k3s-killall.sh
[INFO]  Creating uninstall script /usr/local/bin/k3s-uninstall.sh
[INFO]  env: Creating environment file /etc/systemd/system/k3s.service.env
[INFO]  systemd: Creating service file /etc/systemd/system/k3s.service
[INFO]  systemd: Enabling k3s unit
Created symlink /etc/systemd/system/multi-user.target.wants/k3s.service ? /etc/systemd/system/k3s.service.
[INFO]  systemd: Starting k3s

The documentation notes that as part of the installation process, the /etc/rancher/k3s/k3s.yaml config file is created. In that file, you can see a certificate authority (CA) entry to keep internal communications honest and trustworthy across the cluster, along with a set of admin credentials.

So you don't have to install client-side binaries, the sophisticated kubectl is also installed locally by k3s, which is a nice time-saving touch. You're suitably encouraged at this point to see whether the magical one-liner did reliably create a Kubernetes build by running the command:

$ kubectl get pods --all-namespaces

Although you have connected to the API server, as you can see in Listing 2, some of the pods are failing to run correctly with CrashLoopBackOff errors. Troubleshooting these errors will give you more insight into what might go wrong with Kubernetes and k3s.

Listing 2

Failing Pods (Abridged)

NAMESPACE     NAME                                READY   STATUS             RESTARTS   AGE
kube-system   coredns-d798c9dd-h25s2              0/1     Running            0          10m
kube-system   metrics-server-6d684c7b5-b2r8w      0/1     CrashLoopBackOff   6          10m
kube-system   local-path-provisioner-58fb86bdfd   0/1     CrashLoopBackOff   6          10m
kube-system   helm-install-traefik-rjcwp          0/1     CrashLoopBackOff   6          10m

A cluster by definition is more than one node, and so far you've only created one node. To check how many are available, enter

$ kubectl get nodes
kilo  Ready   master  15m  v1.16.3-k3s.2

or check events. As Listing 3 shows, not much is going on. However, by checking all Kubernetes namespaces for events with the command

$ kubectl get events --all-namespaces

you can see lots of useful information.

Listing 3

Cluster Events

$ kubectl get events
LAST SEEN   TYPE      REASON                    OBJECT      MESSAGE
16m         Normal    Starting                  node/kilo   Starting kubelet.
16m         Warning   InvalidDiskCapacity       node/kilo   invalid capacity 0 on image filesystem
16m         Normal    NodeHasSufficientMemory   node/kilo   Node kilo status is now: NodeHasSufficientMemory
16m         Normal    NodeHasNoDiskPressure     node/kilo   Node kilo status is now: NodeHasNoDiskPressure
16m         Normal    NodeHasSufficientPID      node/kilo   Node kilo status is now: NodeHasSufficientPID
16m         Normal    NodeAllocatableEnforced   node/kilo   Updated Node Allocatable limit across pods
16m         Normal    Starting                  node/kilo   Starting kube-proxy.
16m         Normal    NodeReady                 node/kilo   Node kilo status is now: NodeReady
16m         Normal    RegisteredNode            node/kilo   Node kilo event: Registered Node kilo in Controller

To debug any containerd [7] run-time issues, look at the logfile in Listing 4, which shows some heavily abbreviated sample entries with some of the errors. You can also check the verbose logging in the Syslog file, /var/log/syslog, or on Red Hat Enterprise Linux derivatives, /var/log/messages. To check your systemd service status, enter:

$ systemctl status k3s

Listing 4

Kubernetes Namespace Errors

$ less /var/lib/rancher/k3s/agent/containerd/containerd.log
BackOff   pod/helm-install-traefik-rjcwp                 Back-off restarting failed container
pod/coredns-d798c9dd-h25s2     Readiness probe failed: HTTP probe failed with statuscode: 503
BackOff   pod/local-path-provisioner-58fb86bdfd-2zqn2    Back-off restarting failed container

After looking at the output from the command

iptables --nvL

you might discover (in-hand with reading on GitHub [8] about a cluster networking problem) that firewalld is probably responsible for breaking internal networking. A simple fix is to see whether firewalld is enabled:

$ systemctl status firewalld

To stop it running, you use:

$ systemctl stop firewalld

That iptables and Kubernetes don't play nicely together is relatively well known (in this case, the ACCEPT entries in Figure 2 would be showing as REJECT before stopping firewalld). As a result, traffic won't be forwarded correctly under the k3s-friendly KUBE-FORWARD chain in iptables. The number of pods that should be running can be seen in Listing 5.

Listing 5

All Pods Running

NAMESPACE     NAME                                      READY   STATUS      RESTARTS   AGE
kube-system   local-path-provisioner-58fb86bdfd-bvphm   1/1     Running     0          65s
kube-system   metrics-server-6d684c7b5-rrwpl            1/1     Running     0          65s
kube-system   coredns-d798c9dd-ffzxf                    1/1     Running     0          65s
kube-system   helm-install-traefik-qfwfj                0/1     Completed   0          65s
kube-system   svclb-traefik-sj589                       3/3     Running     0          31s
kube-system   traefik-65bccdc4bd-dctwx                  1/1     Running     0          31s
Figure 2: The ACCEPT entries are welcome, but not any REJECT entries that might show up before stopping firewalld (and, not entirely surprisingly, blocking traffic).

Ain't No Thing

Now that you have a happy cluster, install a pod to make sure Kubernetes is running as expected. The command to install a BusyBox pod is:

$ kubectl apply -f https://k8s.io/examples/admin/dns/busybox.yaml
pod/busybox created

As you can see from the output, k3s accepts standard YAML (see also Listing 6). If you check the default namespace, you can see the pod is running (Listing 7)

Listing 6

BusyBox YAML

apiVersion: v1
kind: Pod
  name: busybox
  namespace: default
  - name: busybox
    image: busybox:1.28
      - sleep
      - "3600"
    imagePullPolicy: IfNotPresent
  restartPolicy: Always

Listing 7

BusyBox Running

$ kubectl get pods -ndefault
busybox   1/1     Running   0          2m14s

Excellent! It looks like the cluster is able to handle workloads, as hoped. Of course, the next step is to add some Agent (Worker) nodes to the k3s Server (Master) to run more than just a single-node cluster.

Two's Company

Look back at Figure 1 to the example of a standard configuration with two Agent nodes and a main Server node. Consider how software as slick as k3s might make life easier for you when it comes to adding Agent nodes to your cluster. I'll illustrate this surprisingly simple process with a single Master node and a single Agent in Amazon Web Services (AWS) [9].

The process so far has set up a Master node, which helps create the intricate security settings and certificates for a cluster. Suitably armed, you can now look inside the file /var/lib/rancher/k3s/server/node-token to glean the API token and insert it into the command that will be run on the Agent node. Essentially, the command simply tells k3s to enter Agent mode and not become a Master node:

$ k3s agent --server https://${MASTER}:6443 --token ${TOKEN}

On a freshly built node (which I'll return to later), it's even quicker:

$ curl -sfL https://get.k3s.io | K3S_URL=https://${MASTER}:6443 TOKEN=${TOKEN} sh -

I have some Terraform code [10] that will set up two instances, creating them in the same virtual private cloud (VPC). To keep things simple, don't worry about how the instances are created; instead, focus on the k3s aspects. For testing purposes, you could hand-crank the instances, too.

As mentioned earlier, I've gone for two Ubuntu 18.04 (Bionic) instances. Additionally, I'll use the same key pair for both, put the instances in a VPC of their own, and configure a public IP address for each (so I can quickly access them with SSH). After a quick check of which packages need updating and an apt upgrade -y command on each instance, followed by a reboot, I'm confident that each instance has a sane environment on which k3s can run (Figure 3).

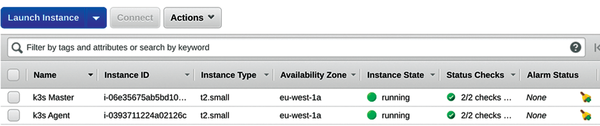

Figure 3: Two freshly baked Bionic instances.

For the Master node, you again turn to the faithful installation one-liner:

$ curl -sfL https://get.k3s.io | sh -

After 30 seconds or so, you have the same output as seen in Listing 1.

Now, check how many nodes are present in the, ahem, lonely one-machine cluster (Listing 8). As expected, the role is displayed as master . Check the API token needed for the node's configuration in /var/lib/rancher/k3s/server/node-token (see also the "API Token" box). I can display the entire unredacted contents of that file with impunity, because the test lab was torn down in a few minutes time:

$ cat /var/lib/rancher/k3s/server/node-token

API Token

Make sure you note the API token correctly or you might see the error:

msg="token is not valid: 401 Unauthorized

I got that error after pasting from a document, and the double quotes (inverted) were altered subtly so that the command line couldn't understand the variable!

Listing 8

A One-Machine Cluster

$ kubectl get nodes
ip-172-30-2-181   Ready    master   27s   v1.16.3-k3s.2

Before leaving the Master node, look up its private IP address,

$ ip a

and the cni0 interface. Then, carefully take a note of that IP address. In my case, it was

The standard security groups (SGs) in AWS only open TCP port 22, so I've made sure that any instances in that newly baked VPC can talk to each other. As you will see in a later command, only TCP port 6443 is needed for intracluster communications. Figure 4 shows what I've added to the SG (the SG self-references here, so anything in the VPC can talk to everything else over the prescribed ports).

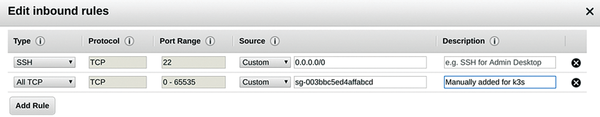

Figure 4: Crosstalk is perfectly acceptable in this VPC – at least on all TCP ports.

Now, jump over to the Agent node:

$ ssh -i k3s-key.pem ubuntu@34.XXX.XXX.XXX # Agent node over public IP address

I'll reuse the command I looked at a little earlier. This time, however, I will populate the slightly longer command used for Agents with two environment variables. Adjust these to suit your needs and then run the commands:

$ export MASTER="" # Private IP Address
$ export TOKEN="K10fc63f5c9923fc0b5b377cac1432ca2a4daa0b8ebb2ed1df6c2b63df13b092002::server:bf7e806276f76d4bc00fdbf1b27ab921"

Finally, you're ready to install your agent with a command that pulls in your environment variables:

$ curl -sfL https://get.k3s.io | K3S_URL=https://${MASTER}:6443 K3S_TOKEN=${TOKEN} sh -

In Listing 9, you can see in the tail end of the installation output where k3s acknowledges Agent mode . Because the K3S_URL variable has been passed to it, the Agent mode has been enabled. However, to test that the Agent node's k3s service is running as expected, it's wise to refer to systemd again:

$ systemctl status k3s-agent

Listing 9

Agent Mode Enabled

[INFO]  env: Creating environment file /etc/systemd/system/k3s-agent.service.env
[INFO]  systemd: Creating service file /etc/systemd/system/k3s-agent.service
[INFO]  systemd: Enabling k3s-agent unit
Created symlink /etc/systemd/system/multi-user.target.wants/k3s-agent.service ? /etc/systemd/system/k3s-agent.service.
[INFO]  systemd: Starting k3s-agent

The output you're hoping for, right at the end of the log, is kube.go:124] Node controller sync successful .

Now for the proof of the pudding: Log back in to your Master node and see if the cluster has more than one member (Listing 10). As you can see, all is well. You can add workloads to the Agent node and, if you want, also chuck another couple of Agent nodes into the pool to help load balance applications and add some resilience.

Listing 10

State of the Cluster

$ kubectl get nodes
ip-172-30-2-181   Ready    master   45m   v1.16.3-k3s.2
ip-172-30-2-174   Ready    <none>   11m   v1.16.3-k3s.2

Here, the <none> instead of worker or agent is the default [11].
