Putting Everything Together

My plan is to use OpenTofu to create my virtual machines and then cloud-init to configure them. As stated, the goal of this article is to deploy a reverse proxy called rproxy and a number of web servers in the configuration shown in Figure 3. I usually let the virtual machines get their IPs from the router over DHCP, because OpenTofu is capable of interfacing with certain routers to set static DNS entries and DHCP reservations; however, for the sake of simplicity, I will skip the router configuration and have cloud-init set static IP addresses instead.

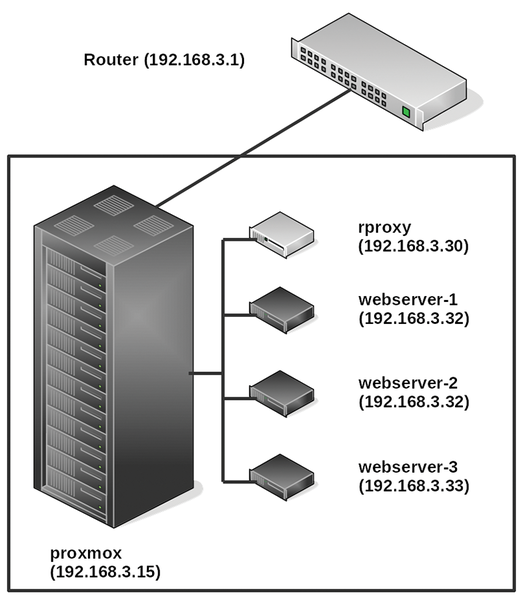

Figure 3: The desired end state: The Proxmox host has address 192.168.3.15. The router hosts a DNS resolver set beforehand.

The first step toward this goal is to set up a Proxmox VE host. Proxmox can be installed according to the official documentation [10], and it isn't more complex than installing any other Linux distribution. For this example, I use a humble desktop computer made from cannibalized parts with 8GB of RAM and an i3 CPU, which is fine for toying around. For long-term usage, though, it is much better to use server hardware. At the office, we use PowerEdge T40 servers in tower form as an inexpensive option.

Once your Proxmox is up and running, you need to configure its storage to accept snippets , which is a fancy way of saying you are allowing Proxmox to store extraneous files that are needed so OpenTofu can upload cloud-init configuration files to the host (Figure 4).

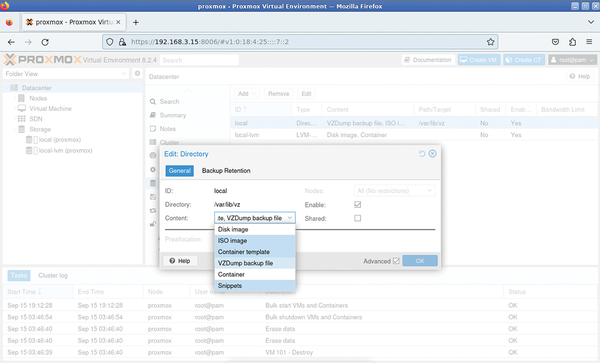

Figure 4: Enable snippets for your Proxmox storage. This step is easy to forget when in a hurry, but it is absolutely necessary to leverage the full capabilities of cloud-init. From the Datacenter pane, select Storage and edit the properties of the local storage as needed.

Connect to your Proxmox server over SSH and issue the commands in Listing 1 to download a cloud-init-capable OpenBSD image and create a template from it. OpenTofu will use this template as a base for every virtual machine you want to create.

# Download the image. https://bsd-cloud-image.org/ is used as a source
mkdir tmpimages
cd tmpimages
wget https://github.com/hcartiaux/openbsd-cloud-image/releases/download/v7.5_2024-05-13-15-25/openbsd-min.qcow2
# Create a virtual machine and assign the downloaded image to it
qm create 100 --name openbsd-master --memory 1024 --agent 1,type=isa --scsihw virtio-scsi-single --boot order='scsi0' --net0 virtio,bridge=vmbr0 --serial0 socket --vga serial0
qm set 100 --scsi0 local-lvm:0,import-from=/root/tmpimages/openbsd-min.qcow2
# Turn the VM into a template
qm template 100

The steps in Listing 1 are mostly self-explanatory, but some of the arguments passed to qm create are worth a comment:

• --agent 1,type=isa tells the Proxmox host to communicate with the guest with a Qemu Agent , which is a daemon that runs inside the guest and accepts instructions from Proxmox when Proxmox needs to perform tasks such as turning off the guest. Communication will occur over a virtual ISA serial port.
• --scsihw virtio-scsi-single defines the virtual controller for the virtual hard drive of the guest.
• --boot order='scsi0' ensures the virtual machine boots from its associated virtual drive.
• --serial0 socket and --vga serial0 create a serial interface that acts pretty much like a serial terminal.

The next step is to install OpenTofu on your workstation. The generic installer from the OpenTofu website can be used as shown in Listing 2 on a Devuan system. Keep in mind, your user needs to be granted sudo privileges before running the installer (e.g., with visudo).

# Download the installer and mark it as executable
wget https://get.opentofu.org/install-opentofu.sh
chmod +x install-opentofu
# Execute the installer. OpenTofu will be downloaded and the repositories from the OpenTofu project will be added to your sources.list
./install-opentofu.sh --install-method deb

A project folder must be created and populated. It is common practice to put the project folder under version control (with Git, CVS, or a similar tool), but this is not necessary. For this example, I create a folder called tofu_project and populate it with the files main.tf (Listing 3), machines.tf (Listing 4), and cloud-init.tf (Listing 5).

01 terraform {
02   required_providers {
03     proxmox = {
04       source = "bpg/proxmox"
05       version = "0.64.0"
06     }
07   }
08 }
09
10 provider "proxmox" {
11   endpoint = "https://192.168.3.15:8006/"
12   username = "root@pam"
13   password = "proxmox"
14   insecure = true
15   tmp_dir  = "/var/tmp"
16
17   ssh {
18     agent = true
19   }
20 }

01 resource "proxmox_virtual_environment_vm" "rproxy" {
02   name = "rproxy"
03   description = "Reverse proxy"
04   node_name = "proxmox"
05
06   clone {
07     vm_id = 100
08   }
09
10   network_device {
11     model = "virtio"
12     bridge = "vmbr0"
13   }
14
15   depends_on = [
16     proxmox_virtual_environment_file.rproxy_cloud_config,
17     proxmox_virtual_environment_file.network_cloud_config,
18   ]
19
20   initialization {
21     user_data_file_id = proxmox_virtual_environment_file.rproxy_cloud_config.id
22     network_data_file_id = proxmox_virtual_environment_file.network_cloud_config[0].id
23   }
24 }
25
26 resource "proxmox_virtual_environment_vm" "webserver" {
27   count = "3"
28   name = "webserver-${count.index+1}"
29   description = "Generic web server"
30   node_name = "proxmox"
31
32   clone {
33     vm_id = 100
34   }
35
36   network_device {
37         model = "virtio"
38         bridge = "vmbr0"
39   }
40
41   depends_on = [
42     proxmox_virtual_environment_file.webserver_cloud_config,
43     proxmox_virtual_environment_file.network_cloud_config,
44     proxmox_virtual_environment_vm.rproxy,
45   ]
46   initialization {
47     user_data_file_id = proxmox_virtual_environment_file.webserver_cloud_config.id
48     network_data_file_id = proxmox_virtual_environment_file.network_cloud_config[count.index+1].id
49   }
50 }

01 resource "proxmox_virtual_environment_file" "rproxy_cloud_config" {
02   content_type = "snippets"
03   datastore_id = "local"
04   node_name    = "proxmox"
05
06   source_file {
07     path = "rproxy.yml"
08     file_name = "user_data_vm-rproxy.yml"
09   }
10 }
11
12 resource "proxmox_virtual_environment_file" "webserver_cloud_config" {
13   content_type = "snippets"
14   datastore_id = "local"
15   node_name    = "proxmox"
16
17   source_file {
18     path = "webserver.yml"
19     file_name = "user_data_vm-webserver.yml"
20   }
21 }
22
23 resource "proxmox_virtual_environment_file" "network_cloud_config" {
24   count = 4
25   content_type = "snippets"
26   datastore_id = "local"
27   node_name    = "proxmox"
28
29   source_raw {
30     data = templatefile("network.tftpl", {myip = "192.168.3.${count.index+30}"})
31     file_name = "network_data_vm-${count.index}.yml"
32   }
33 }

The main.tf file defines which providers and which versions (if need be) are used for the project. The provider I selected, bpg/proxmox, connects to the host over SSH to create automatically the environment defined by the project. OpenTofu can also use the regular Proxmox API with this provider. The configuration parameters passed to the Proxmox provider in lines 10-19 in Listing 3 are self-explanatory. Keep in mind that hardcoding credentials in the project file is fine for testing, but for a production environment you should consider passing the username and password with the environment variables PROXMOX_VE_USERNAME and PROXMOX_VE_PASSWORD [11].

The machines.tf file contains information about the virtual machines you want to create. OpenTofu creates new virtual machines by cloning from the template defined earlier. In the example, a proxmox_virtual_environment_vm resource named rproxy is created (Listing 4, lines 1-24), whose task will be to act as a reverse proxy for the web servers. The next block in the file defines a resource named webserver (lines 26-50) with a count = "3" parameter, so three instances are created with names webserver-1, webserver-2, and webserver-3. The rproxy resource is defined as a dependency for the web servers in line 44 to ensure it is created before the rest of the machines.

You will notice some proxmox_virtual_environment_file resources are declared as hard dependencies for the virtual machines to ensure they are not created without a proper cloud-init configuration in place. I have already mentioned that Proxmox's capabilities for setting cloud-init parameters from the GUI are very limited; thankfully, you can leverage the full power of cloud-init with cicustom files that contain all the cloud-init parameters you want to pass to each of your virtual machines, and they are uploaded to the Proxmox VE host before each instance is created.

The cloud-init.tf file lists the cicustom files that will be uploaded to Proxmox. A cloud-init configuration file for rproxy is defined in lines 1-10 in Listing 5 and another in lines 12-21 that is applied to all the web servers. These files are stored in the project folder and are uploaded to the server by OpenTofu just before the virtual machines are created. You can see both files in Listings 6 and 7. (See the "Different cloud-init Files" box.)

01 #cloud-config
02 users:
03   - name: openbsd
04     gecos: openbsd
05     groups: wheel
06     plain_text_passwd: openbsd
07     lock_passwd: false
08     doas: [permit nopass openbsd]
09
10 write_files:
11   - path: /etc/relayd.conf
12     content: |
13       table <webservers> { 192.168.3.31 192.168.3.32 192.92.168.33 }
14       http protocol "http" {
15         match request header set "X-Forwarded-For" value "$REMOTE_ADDR"
16         match request header set "X-Forwarded-Port" value "$SERVER_PORT"
17         match request header set "X-Forwarded-By" value "$SERVER_ADDR:$SERVER_PORT"
18       }
19
20       relay "webservice" {
21         listen on 192.168.3.30 port 80
22         protocol "http"
23         forward to <webservers> port 80 mode loadbalance \
24             check http "/index.html" code 200
25       }
26     owner: 'root:wheel'
27     permissions: '0644'
28     defer: true
29
30 runcmd:
31   - pkg_add qemu-ga
32   - rcctl enable qemu_ga
33   - echo 'qemu_ga_flags="-t /var/run/qemu-ga -m isa-serial -p /dev/cua01 -f /var/run/qemu-ga/qemu-ga.pid"' >> /etc/rc.conf.local
34   - rcctl start qemu_ga
35   - rcctl enable relayd
36   - rcctl start relayd

01 #cloud-config
02 users:
03   - name: openbsd
04     gecos: openbsd
05     groups: wheel
06     plain_text_passwd: openbsd
07     lock_passwd: false
08     doas: [permit nopass openbsd]
09
10 write_files:
11   - path: /etc/httpd.conf
12     content: |
13       server "default" {
14         listen on * port 80
15       }
16   - path: /var/www/htdocs/index.html
17     content: |
18       <!DOCTYPE html>
19       <html lang="en">
20         <head>
21           <meta charset="utf-8">
22           <title>Hello, World</title>
23         </head>
24         <body>
25           <h1>Hello, world!</h1>
26           <p>This is an example file</p>
27         </body>
28       </html>
29
30 runcmd:
31   - pkg_add qemu-ga
32   - rcctl enable qemu_ga
33   - echo 'qemu_ga_flags="-t /var/run/qemu-ga -m isa-serial -p /dev/cua01 -f /var/run/qemu-ga/qemu-ga.pid"' >> /etc/rc.conf.local
34   - rcctl start qemu_ga
35   - rcctl enable httpd
36   - rcctl start httpd

The users directive in each file commands the creation of user openbsd with password openbsd (see the "How User Creation Works" box). The write_files directive instructs cloud-init to place some configuration files that the services will need. Finally, the runcmd directive lists all the commands cloud-init will run on first boot to install, enable, configure, and start qemu-agent and then enable and start the main service for the virtual machine with rcctl (the OpenBSD command for managing services).

The configuration of the network (Listing 5, lines 23-33) is a bit tricky and is accomplished by templates (line 30). A network_cloud_config resource is created with count = 4, so OpenTofu creates a network cloud-init file for each of the virtual machines. These files are named network_data_vm-0.yml, network_data_vm-1.yml, and so on. The files resulting from the network.tftpl template (Listing 8) are uploaded to Proxmox and assigned the virtual machine IP addresses from 192.168.3.30 onward.

network:
  version: 2
  ethernets:
    vio0:
      addresses:
      - ${myip}/24
      gateway4: 192.168.3.1
      nameservers:
        addresses:
        - 192.168.3.1

The user_data_file_id and network_data_file_id parameters for each machine in Listing 4 ensure that Proxmox loads the corresponding cloud-init files when creating each virtual machine. The rproxy resource loads network_data_vm-0.yml, and the web servers each load a file from network_data_vm-1.yml onward.

Time for Deployment

With all of the code in place, it is time to initialize OpenTofu and command it to perform the deployment. First, the initialization command installs all the modules required by the project (Figure 5):

# tofu init

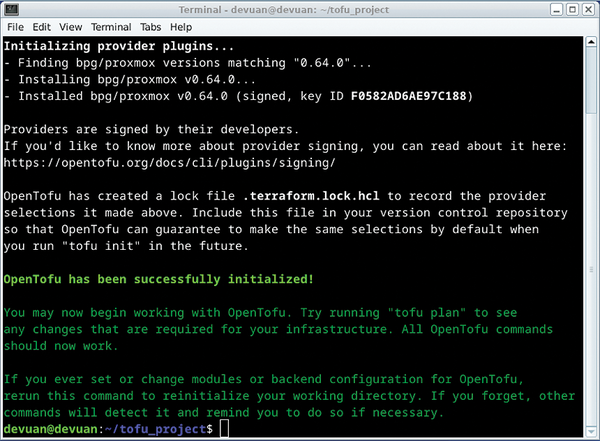

Figure 5: Successful OpenTofu initialitation.

Second, ensure OpenTofu will do the right thing when you request your systems be deployed by running the following command from the project folder (Figure 6):

# tofu plan

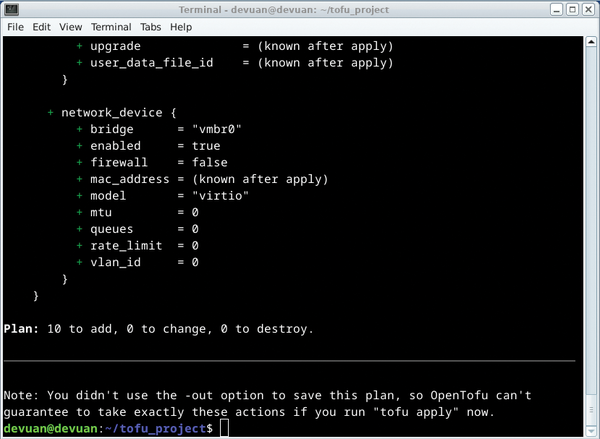

Figure 6: You can check which actions OpenTofu will take in advance to ensure your project is configured as intended before execution.

Final deployment could take some time, but at this point it will be fully automated. Just issue

# tofu apply --parallelism=1

and watch OpenTofu work its magic. In this example, I use --parallelism=1 because my testing hardware is weak, and I want to limit OpenTofu to a single concurrent operation. For regular server hardware, it can be omitted. When you get bored of your testing environment, you can trash it with tofu destroy.

Conclusion

Automating deployments is an involved process, but once the process is completed, it will save you a lot of time. OpenTofu, in combination with cloud-init, is a good option for automating deployments on Proxmox.

The Proxmox provider used in this article comes from bpg , but it is worth noticing that Telmate [12] also has a provider. Both have limitations that are hit when you attempt complex tasks (e.g., leveraging Proxmox's native high-availability mechanisms or using its native firewall systems). Still, what you can accomplish with currently existing code is impressive.

Combining providers can be a very powerful proposition. For example, if you have a MikroTik router, you can use OpenTofu to add and remove DHCP leases and DNS entries at the same time you deploy your virtual machines. You can also use it to set firewall rules in the router. Although the example shown in this article is quite basic, once you become proficient with deployment automation, the sky is the limit.

The code in this article has been kept simple for didactic reasons and has much room for improvement. For example, the number of web servers deployed is hardcoded, instead of taken from a user-defined variable. The cloud-init user file for rproxy also has the web servers' IPs hardcoded, instead of being automatically defined. The way the network configuration is assigned to each virtual machine is a bit fragile. If you feel like solving these issues, the official documentation will be useful [13].
