The End Is Nigh

Having the ability to customize each and every query along with the way that those queries are formatted and output visually is a powerful addition to any modern server estate. I would recommend having a look at hooking up the Kubernetes plugin and the MySQL plugin and configuring them to suit your needs. In this article, I have barely scratched the surface of either Prometheus or Grafana.

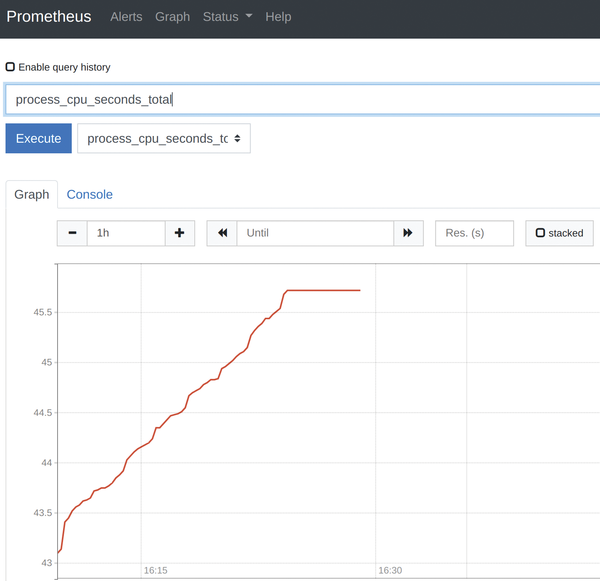

Although I have purposely tried to extol the virtues of Grafana's visualizations, I have left out the exceptionally sophisticated Prometheus to some extent. I would be remiss not to include at least one query, so Figure 9 shows, from http://localhost:9090 , the output from the CPU query:

Figure 9: Checking CPU performance.

process_cpu_seconds_total

The built-in queries available in the pull-down menu next to the blue Execute button are numerous and should offer enough interest to whet your appetite for more. With some effort, you can create a fully bespoke, comprehensive reporting and alerting system with these exceptional tools. I'll leave the rest to you.

Infos

Grafana: https://grafana.com
Prometheus: https://prometheus.io
Grafana vs. Prometheus: https://wisdomplexus.com/blogs/grafana-vs-prometheus/amp/
Time series: https://en.wikipedia.org/wiki/Time_series
Grafana Docker image: https://grafana.com/docs/grafana/latest/installation/docker
Transformations: https://grafana.com/docs/grafana/latest/panels/transformations
Grafana plugins: https://grafana.com/grafana/plugins
GitHub repository: https://github.com/grafana/grafana-starter-datasource
Prometheus on Docker: https://prometheus.io/docs/prometheus/latest/installation
Expression browser: https://prometheus.io/docs/prometheus/latest/querying/basics/
Prometheus data sources: http://docs.grafana.org/datasources/prometheus
Prometheus Stats JSON: https://grafana.com/grafana/dashboards/2
