Secure containers with a hypervisor DMZ

Buffer Zone

gVisor

Google has implemented in the gVisor [13] project a watered-down variant of starting a second kernel. Two major challenges arise in establishing an additional operating system kernel as a buffer zone The first is running one or even multiple additional kernels. The second relates to transparent integration into the existing world of tools and methods for container management.

The gVisor project, written in the fairly modern Go programming language, provides a pretty pragmatic solution for these tasks. The software only pretends to be a genuine Linux kernel. The result is a normal executable file that maps all the necessary functions of the operating system kernel; the challenge of how to load, or of multiple execution, is therefore off the table.

Imitating a Linux kernel is certainly difficult, but not impossible. To minimize the additional attack surface, the range of functions can be reduced accordingly – "only" containers have to run. The gVisor kernel comprises two components (Figure 4): Sentry mimics the Linux substructure and intercepts the corresponding system calls, and Gofer controls access to the host system's volumes.

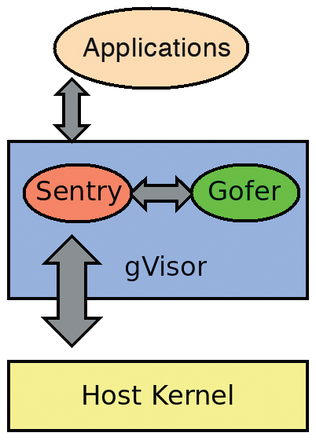

Figure 4: The schematic structure of gVisor.

Attentive readers might wonder what exactly in this strategy might not work, and things did get off to a bit of a bumpy start. Fans of the Postgres database had some worries because of a lack of support for the sync_file_range() system call [14]. By now, this is ancient history. Even inexperienced programmers can get an overview of the supported system calls in the gvisor/pkg/sentry/syscalls/linux/linux64.go file, but you do not have to go into so much detail: The developer website supplies a compatibility list [15].

Gofer acts as a kind of proxy and interacts with the other gVisor component, Sentry. If you want to know more about it, you have to take a look at a fairly ancient protocol – 9P [16] – that has its origins in the late 1980s in the legendary Bell Labs.

Shoulder Surfing gVisor

If you compare Kata Containers and gVisor, the latter looks simpler. Instead of multiple software components, you only need to manage a single executable file. The area of attack from additional components on the overall system is also smaller. On the downside, compatibility requires additional overhead. Without any personal effort, users are dependent on the work and commitment of the gVisor developers.

Secure Containers with gVisor

The first steps with gVisor are easy: You only have to download and install a single binary file. One typical pitfall (besides unsupported system calls) is allowing for the version of the gVisor kernel, version 4.4.0 by default. In the world of open source software, however, this is often little more than a string – as it is here (Listing 2).

Listing 2

gVisor Kernel Buffer Zone

$ cat /etc/docker/daemon.json
{
 "runtimes": {
   "oci": {
     "path": "/usr/sbin/runc"
   },
   "runsc": {
     "path": "/usr/local/bin/runsc",
       "runtimeArgs": [
         "--platform=ptrace",
         "--strace"
       ]
   }
 }
}
$ uname -r
5.8.16-300.fc33.x86_64
$ docker run -ti --runtime runsc busybox sh
/ #
/ # uname -r
4.4.0

The version number is stored in the gvisor/pkg/sentry/syscalls/linux/linux64.go file. Creating a customized binary file is easy thanks to (traditional) container technology. Listing 2 also shows how gVisor can be installed and operated in parallel with other runtime environments. You only need to specify the path to the binary file and any necessary arguments.
